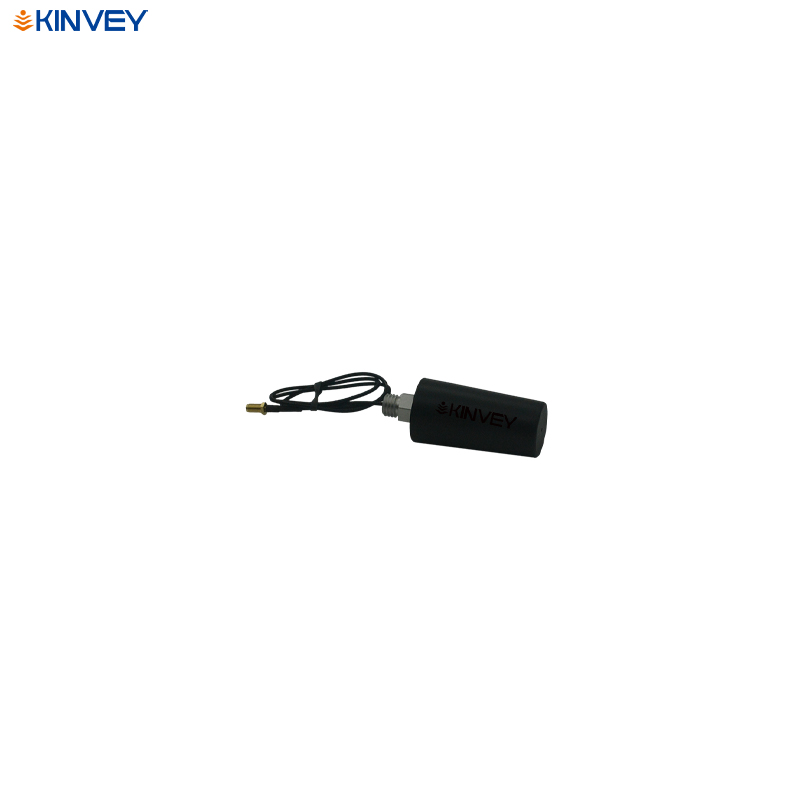

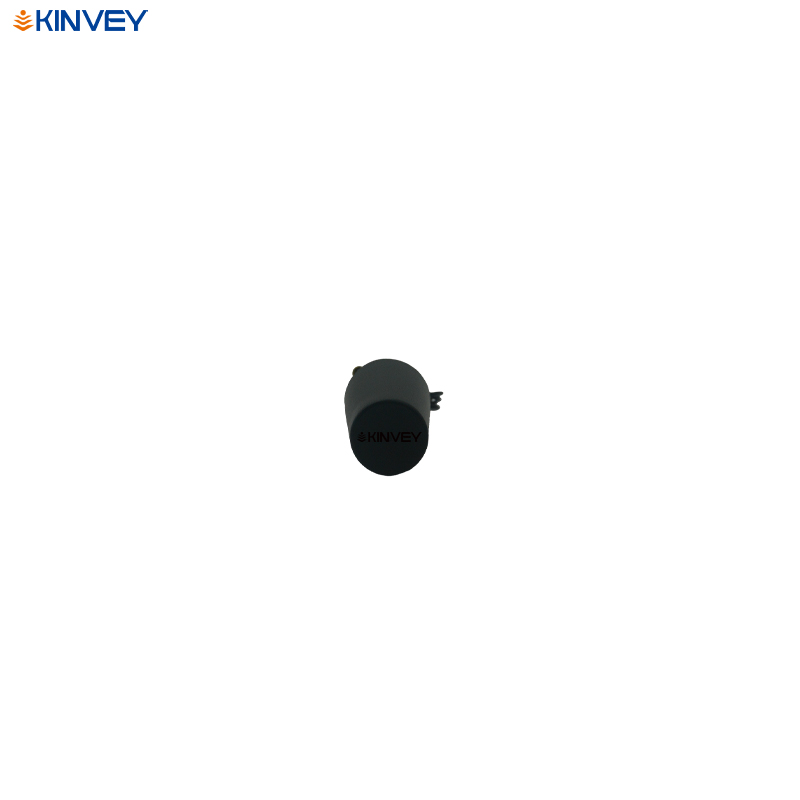

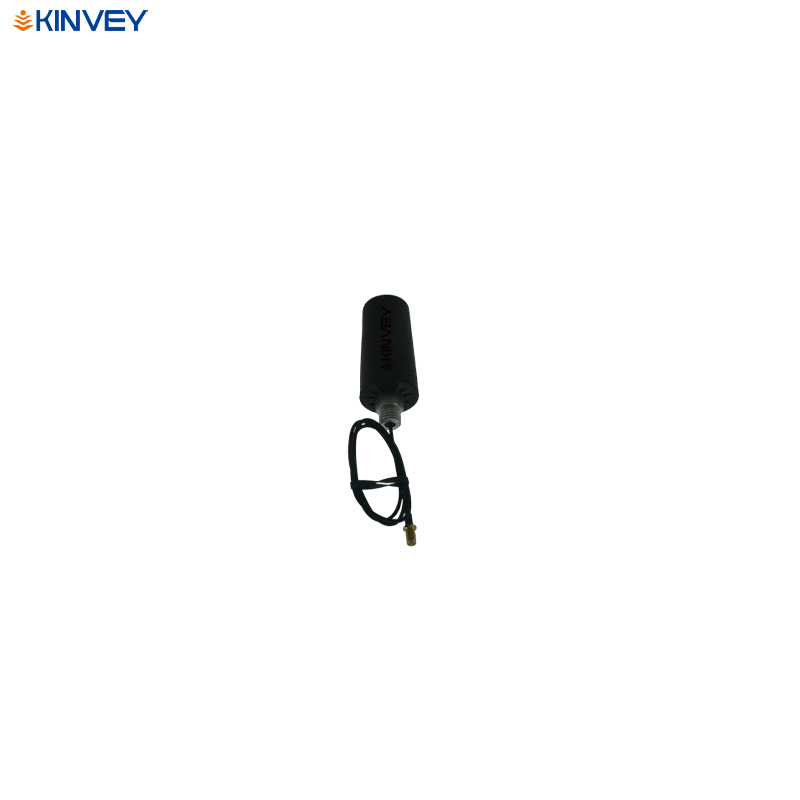

Multi-Frequency Band Vehicle Antenna KV-FM100

·Support GPS、BDS、GLONASS、GALILEO four-system Multi-Frequency
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment
·Small size, light weight, reliable structure, protection level up to IP68, greatly improving the reliability of the machine, such as waterproof, vibration, and so on
·Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-FM100 is a full frequency vehicle antennasupporting GPS、BDS、GLONASS、GALILEO, which can be widely used in automated agricultural equipment, high precision UAVs, vehicles-mounted etc. it is especially suitable for many applications of high-precision automated agricultural machines, such as high-precision tractors, plant protection machines, cultivators, and harvesters

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency well, such as L5、B3、LBand and other frequency points, greatly improving the stability of the system

● Small size, light weight, reliable structure, protection level up to IP68, greatly improving the reliability of the machine, such as waterproof, vibration, and so on

● Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2/LBand/L5
BDS B1/B2/B3
GLONASS G1/G2/G3
GALILEO E1/E6/E5b
L-Band

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB

Azimuth Coverage

0°~360°
