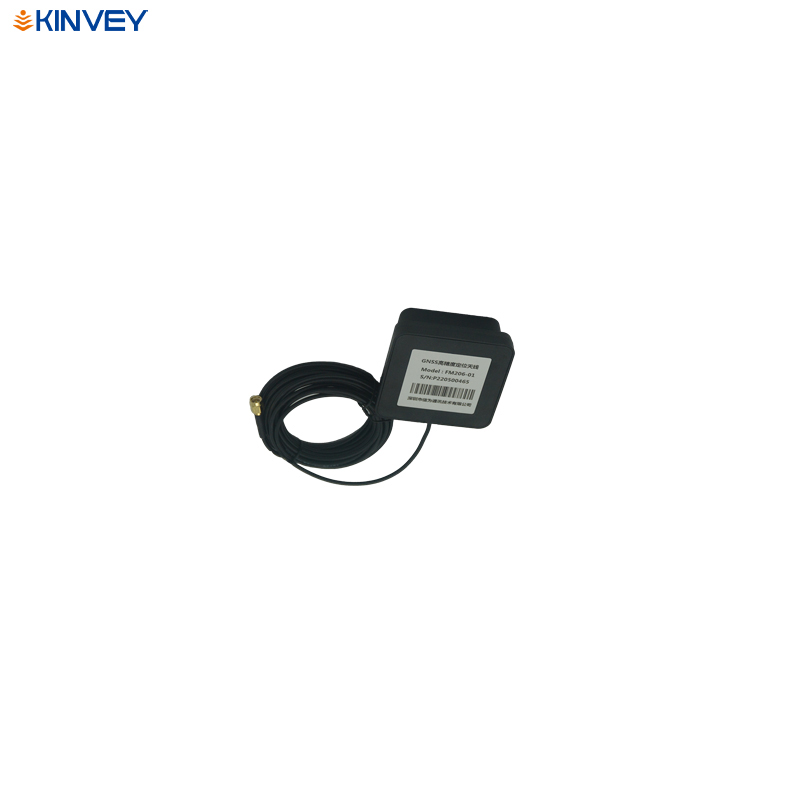

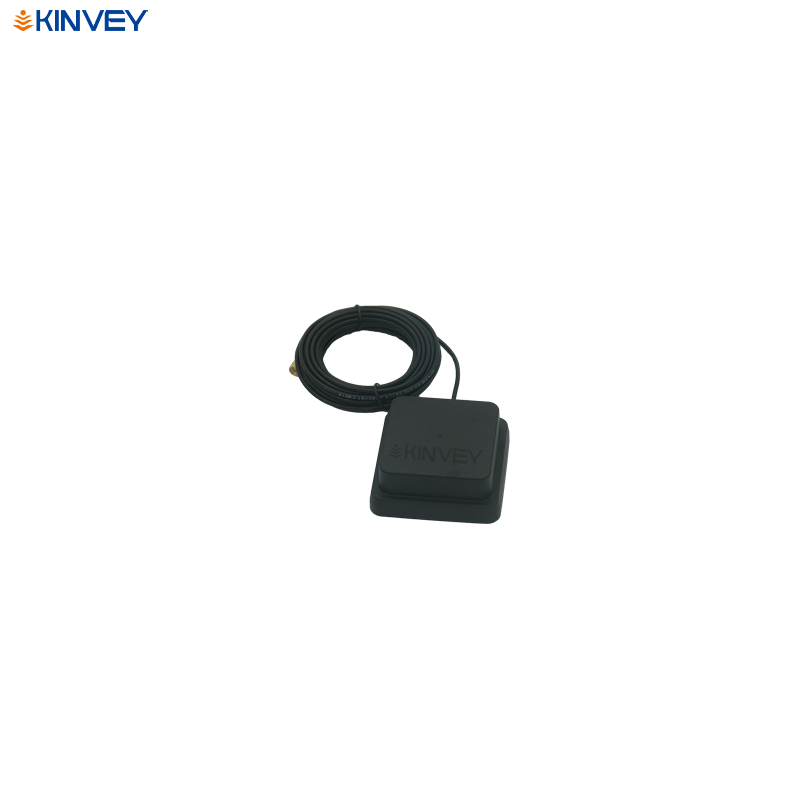

Vehicle Antenna KV-FM206

Support GPS、BDS、GLONASS、GALILEO four-system multi-frequency
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment
·Small size, light weight, reliable structure, protection level up to IP67, greatly improving the reliability of the whole UAV/vehicle, such as waterproof, impact and so on.
·Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-FM206 is a four-system multi-frequency vehicle antenna supporting GPS, BDS, GLONASS and GALILEO, which can be widely used in surveying and mapping, high-precision UAVs, vehicle-mounted and other industries, and is especially suitable for many vehicle-mounted applications, such as autopilot, patrolling, disaster surveillance, aerial photography, telemetry, public security monitoring and electric power patrol

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment;

● Passive antenna with wide working band can support multi-system & multi-frequency well, especially the global networking B3frequency point, greatly improving the stability of the system

● Small size, light weight, reliable structure, protection level up to IP67, greatly improving the reliability of the whole UAV/vehicle, such as waterproof, impact and so on

● Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2/LBand/L5
BDS B1I/B2I/B2A
GLONASS G1/G2
GALILEO E1/E6/E5b
L-Band

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB

Azimuth Coverage

0°~360°
