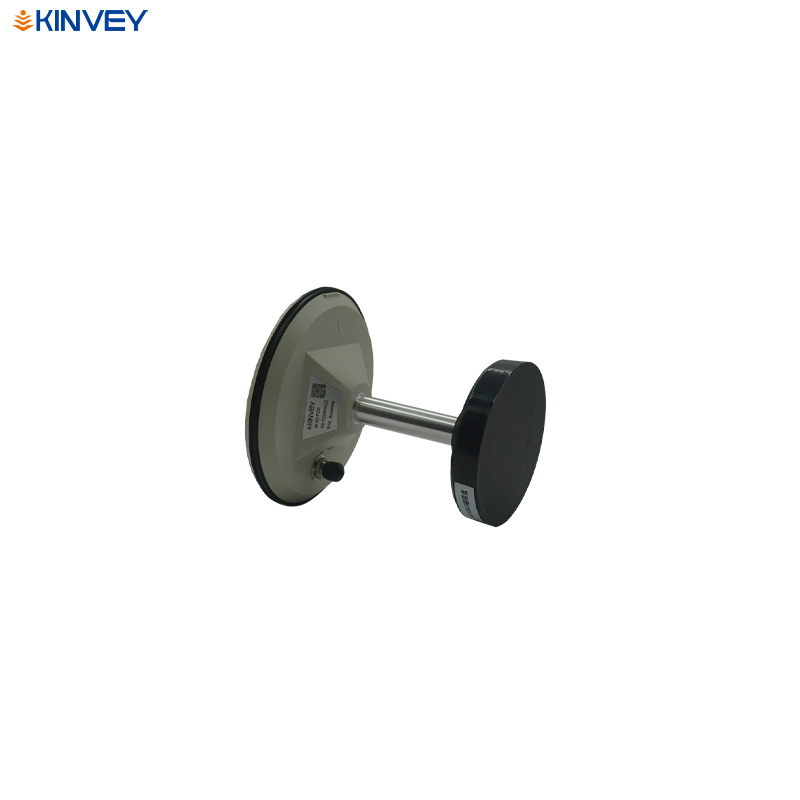

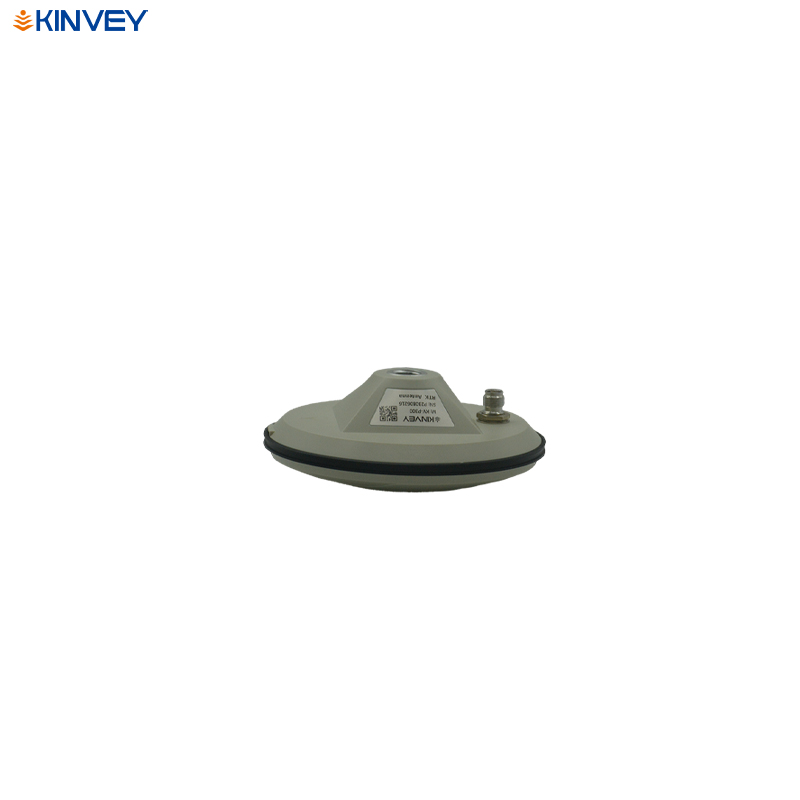

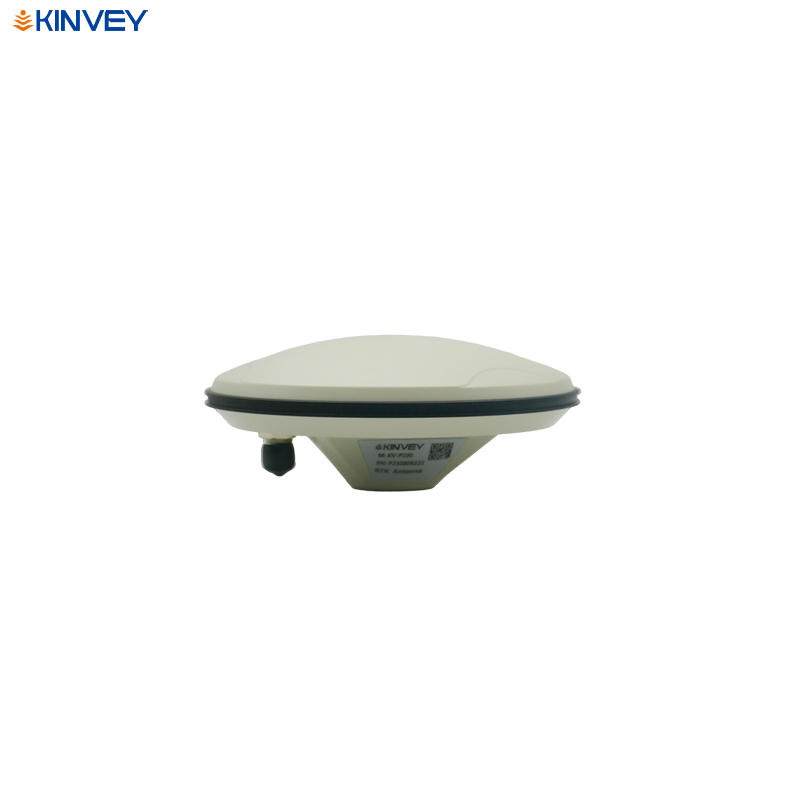

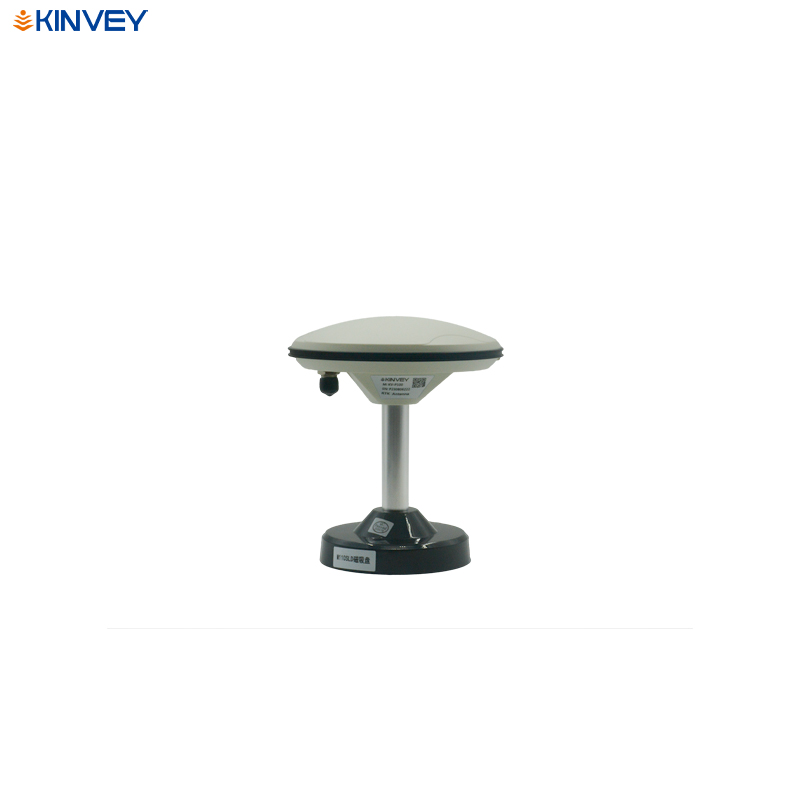

GNSS Full-bandSurvey Antenna KV-P100

·four-system full-band high-precision support L-Band
·Antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability
·IP67 waterproof, dustproof and ultraviolet shell, can meet the requirements of long-term use in variety of harsh outdoor environments
Inquiry
Overview
Technical Features
Parameters
Applications
Recommended Products
Overview
KV-P100 is a four-system full-band high-precision surveying antenna supporting GPS/BDS/GLONASS and GALILEO, which can meet the needs of Bei Dou III and Multi-system compatibility of measurement equipment, it can be widely used in surveying and mapping, marine surveying, geological monitoring, bridge deformation monitoring, automated harbor, UAV and unmanned vehicle applications
Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency points well, especially the global networking B3 frequency point and L5, L-band frequency point, greatly improving the stability of the system

● Antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

● Compact and reliable shell structure, IP67 waterproof, dustproof and ultraviolet shell, can meet the requirements of long-term use in variety of harsh outdoor environments


Parameters
PERFORMANCE
Signal Received
GPS L1/L2/L5
BDS B1/B2/B3
GLONASS L1/L2/L3
GALILEO E1/E5a/E5b/E6
L-Band
Antenna Impedance
50Ω
Polarization
RHCP
Axis Ratio
≤3dB
Azimuth coverage
0°~360°
VSWR
≤1.5
Maximum Gain
5.5dBi
Phase Center Error
±2mm
LNA
LNA Gain
L1:38±2dB
L2:40±2dB
Noise Figure
≤1.8dB
VSWR
≤2.0
Passband Ripple
±2dB
Operating Voltage
DC3.3~12V
Operating Current
≤50mA
MECHANICAL
Dimensions
Φ150*61mm
Weight
≤450g
Mounting
5/8''× 11(Inch)
Connector
TNC-K
ENVIRONMENTAL
Water/Dust Resistance
IP67
Operating Temperature
-40℃~+85℃
Storage Temperature
-55℃~+85℃
Humidity
95% Non-condensing
