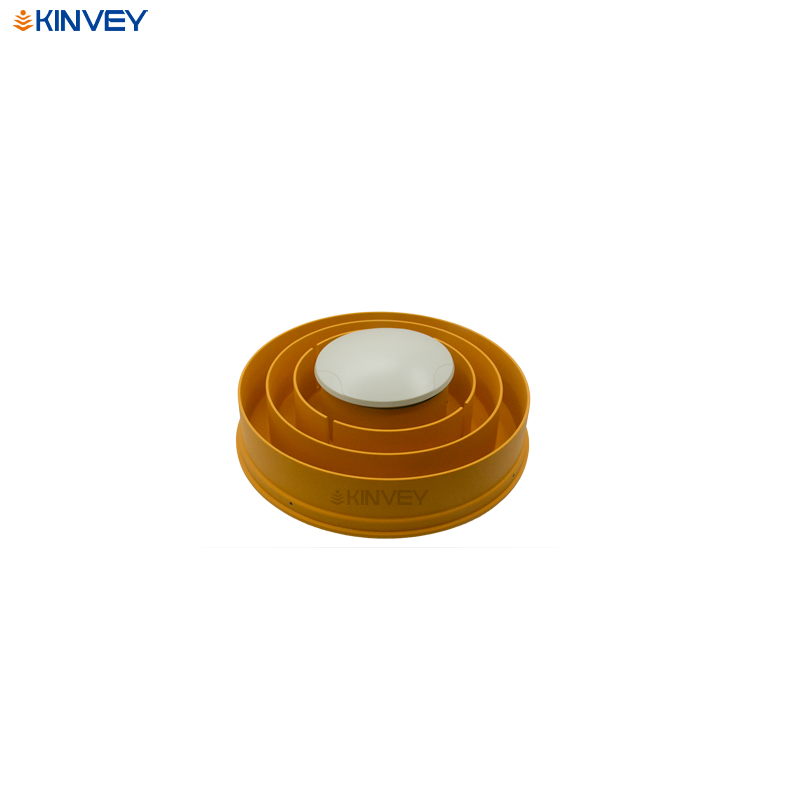

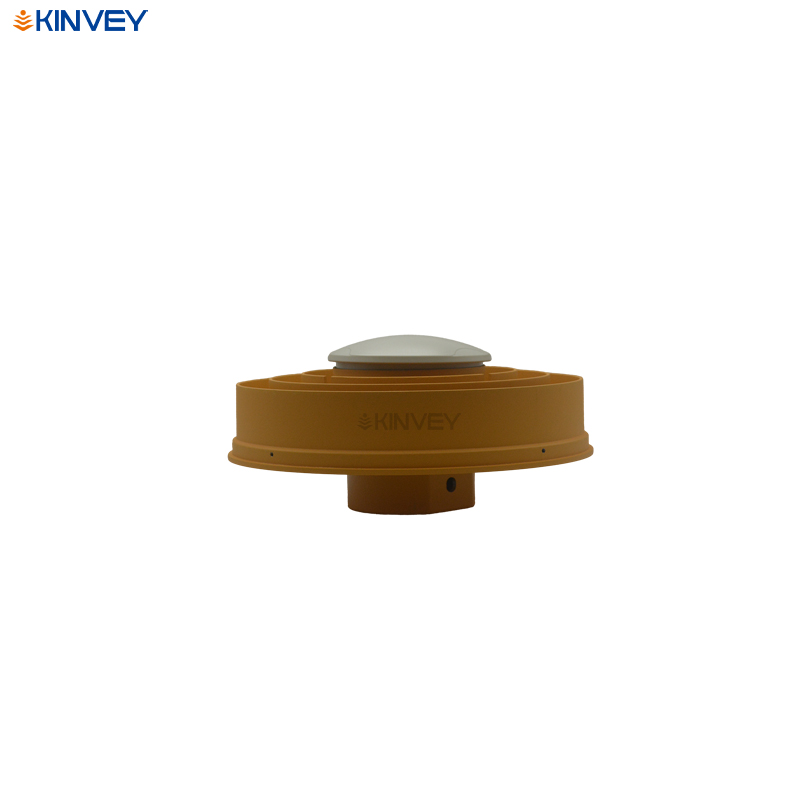

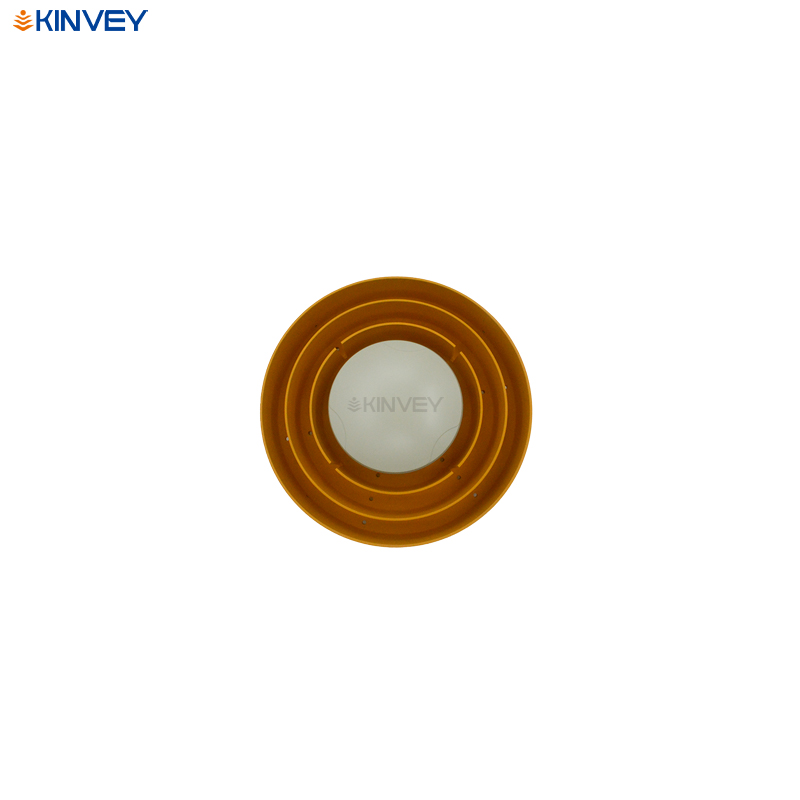

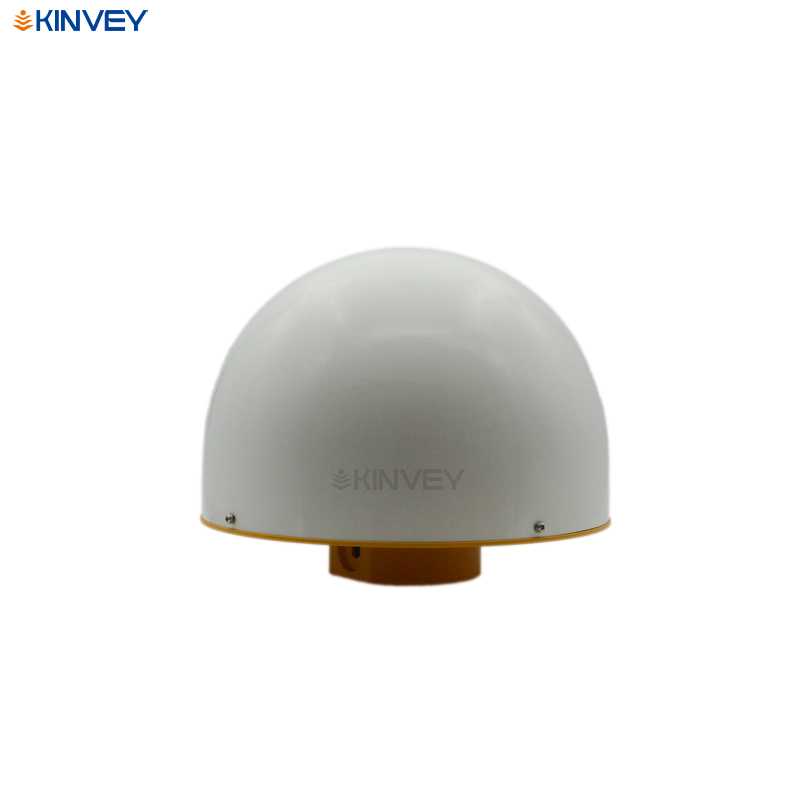

GNSS Chock Ring Antenna KV-CM100

·Phase center accuracy reaches sub-millimeter level, high stability, and good repeatability
·Using miniaturized 3D choke design, light weight structure
·High gain at low elevation and strong satellite tracking capability
·IP67 level waterproof and dust proof, can work normally in outdoor for years

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-CM100 is a multi-system full-frequency reference station antenna covering BDS、GPS、GLONASS、and GALILEO, it adopts A compact 3D choke structure design, which has the features of stable phase center, high positioning accuracy, and good low elevation angle reception

Technical Features

● Phase center accuracy reaches sub-millimeter level, high stability, and good repeatability

● Using miniaturized 3D choke design, light weight structure

● Unique choke and choke plate design, with excellent multi-path suppression effect

● High gain at low elevation and strong satellite tracking capability

● Low noise amplifier and high gain, with long cabling (100 meters) between your antenna and receiver

● IP67 level waterproof and dust proof, can work normally in outdoor for years.

Parameters

PERFORMANCE

Signal Received

GPS L1/L2/L5
BDS B1I/B1C/B2a/B2b/B3I/B3Q/B3A/B3AE
GLONASS G1/G1aG2/G2a
GALILEO E1/E5a/E5b/E6
SBAS L1/L5
QZSS L1/L2c/L5/L6 L-Band

Antenna Impedance
