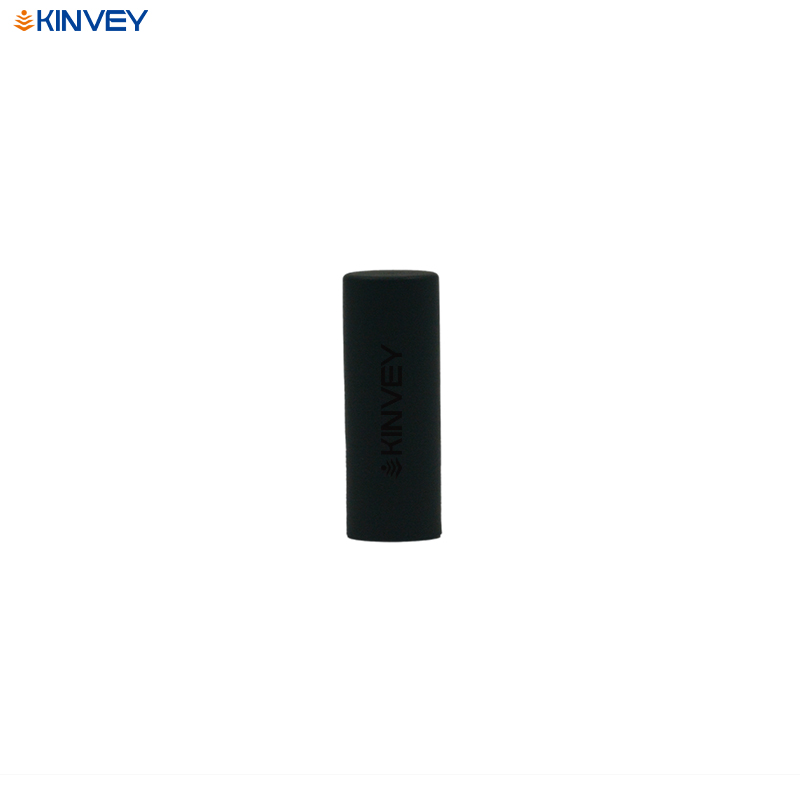

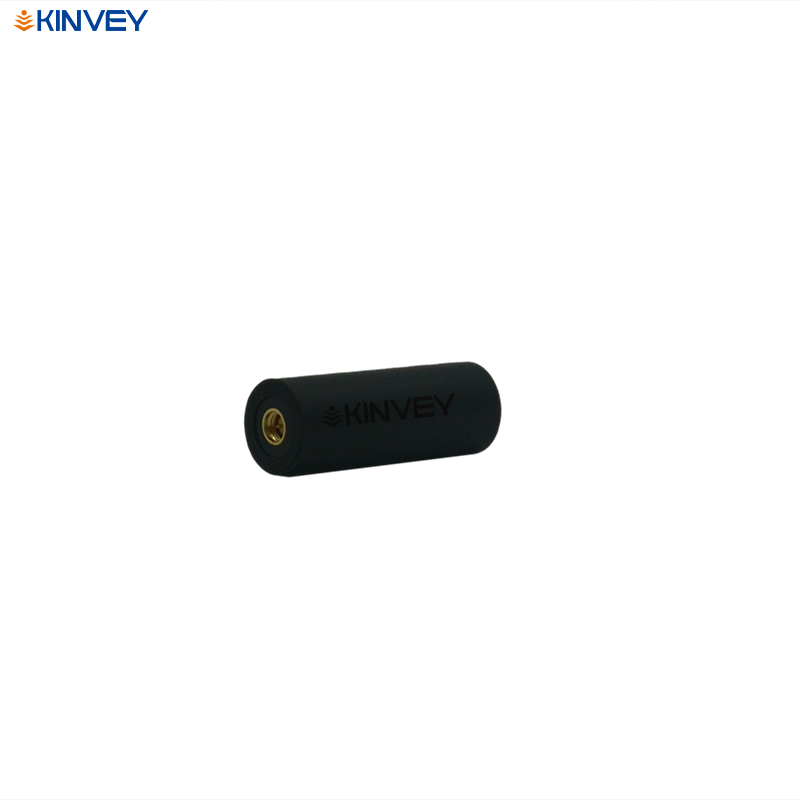

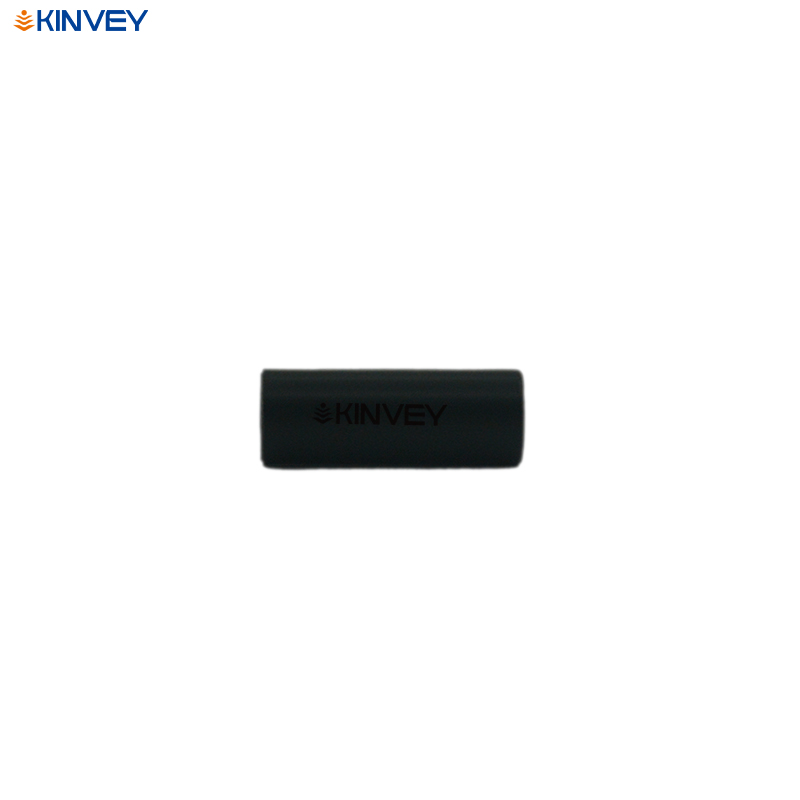

Multi-frequency Handheld Antenna KV-G5001

·Support GPS、BDS、GALILEO three-system five-frequency
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment.
·Small size, light weight, sturdy and reliable structure, assembled protection level up to IP67, to meet a variety of environmental applications.
·Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-G5001 is a 3-system 5-frequency antenna supporting GPS, BDS, and GALILEO, which can be widely used in surveying and mapping, high-precision UAVs, vehicle-mounted and other industries, and is especially suitable for many applications of handhelds, such as surveying and mapping, agriculture, patrolling, and public security monitoring

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● The antenna band in addition to support GPS L1 and L5 also support for Bei Dou, GALILEO and other systems of the frequency, greatly improving the stability of the system

● Small size, light weight, sturdy and reliable structure, assembled protection level up to IP67, to meet a variety of environmental applications

● Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L5
BDS B1/B2
GALILEO E5a

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB

Azimuth coverage

0°~360°
