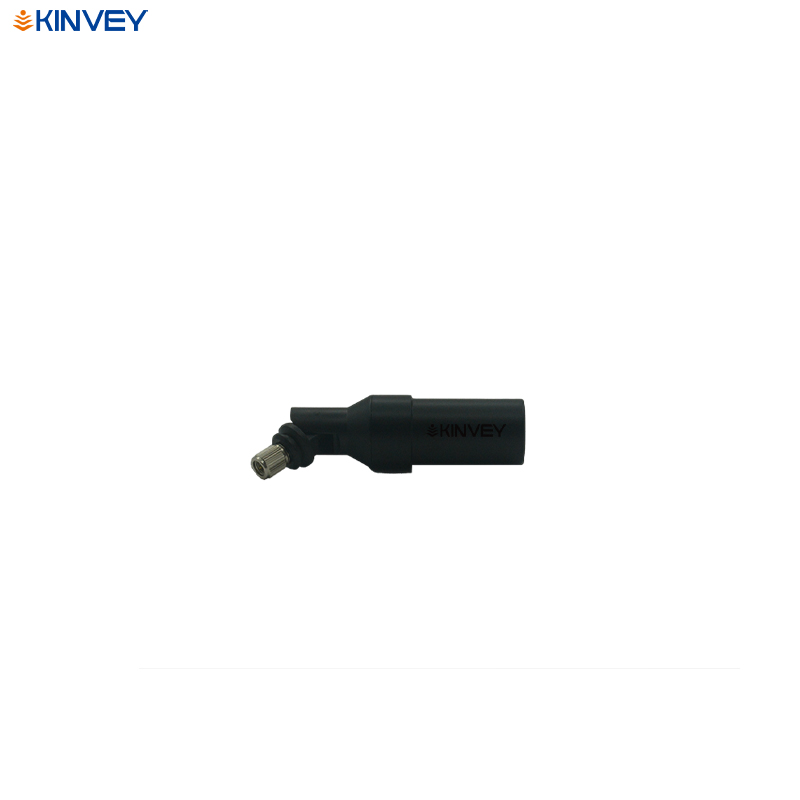

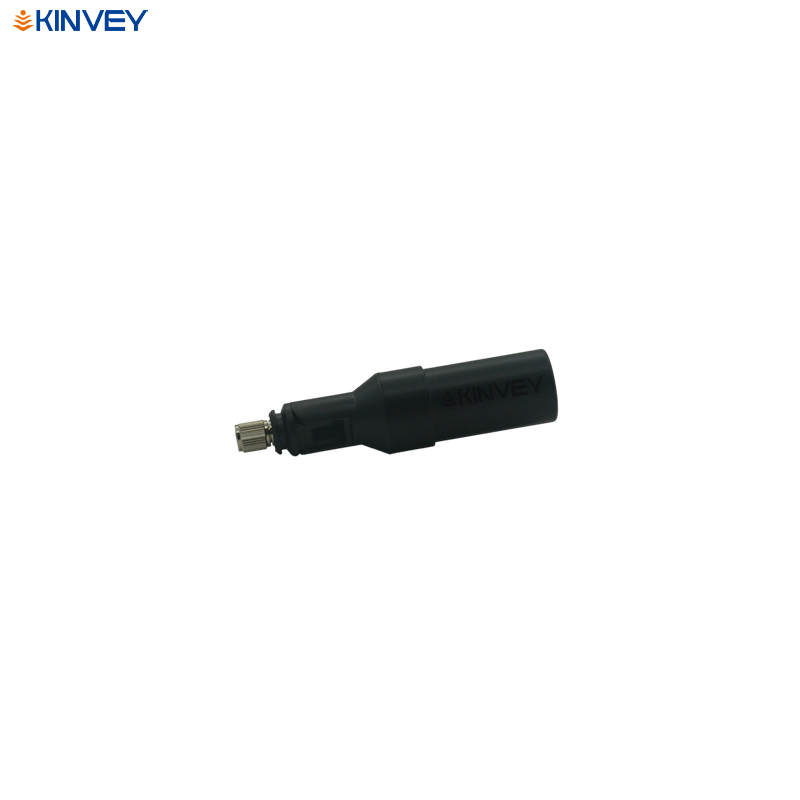

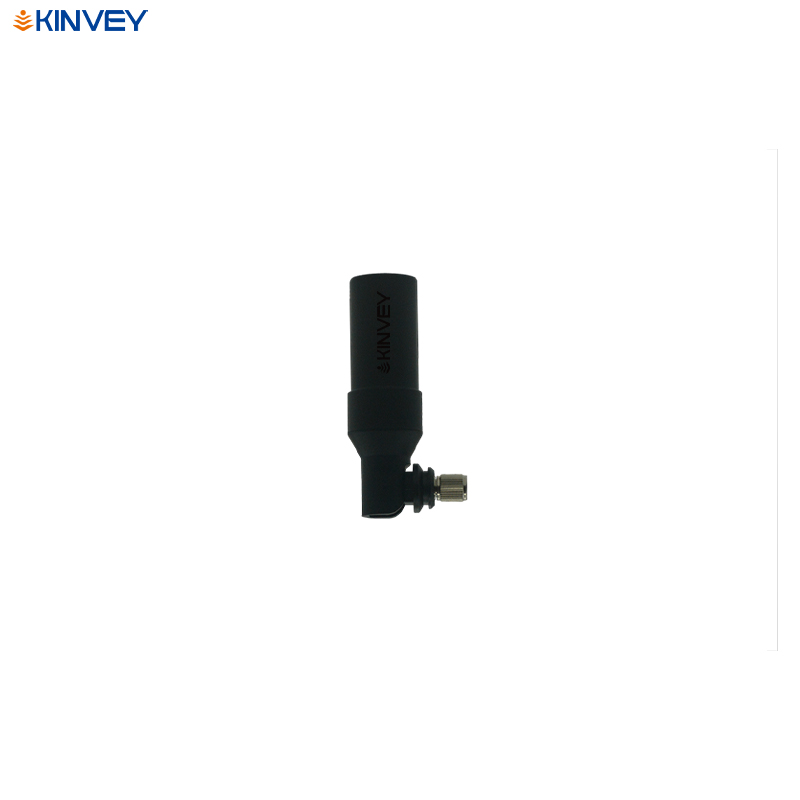

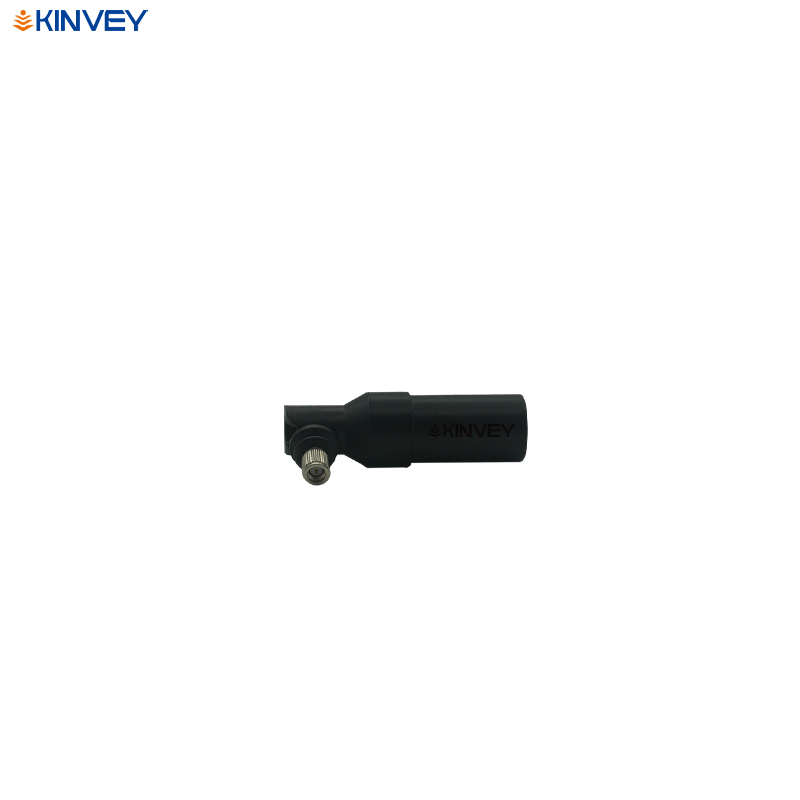

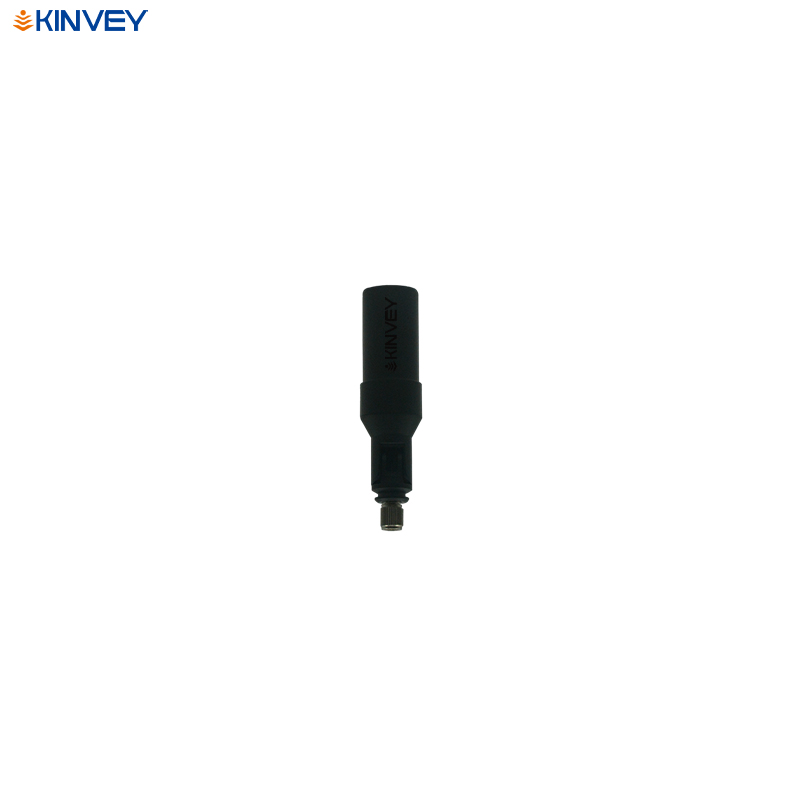

Multi-frequency handheld antenna KV-GM006

·Support four-system full-band
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment
·Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-GM006 is a quad-system multi-frequency handheld antenna supporting GPS,BDS,GLONASS and GALILEO, which can be widely used in surveying and mapping, high-precision on UAVs, etc. It is especially suitable for surveying and mapping handhelds, PADs and so on

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency point well, especially the global networking B3 frequency point, greatly improving the stability of the system.3. Antenna with bending structure, compact size, easy to carry and convenient to use

● Strong anti-interference performance, antenna out-of-band suppression is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2
BDS B1/B2/B3
GLONASS G1/G2
GALILEO E1/E5b

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB

Azimuth coverage

0°~360°
