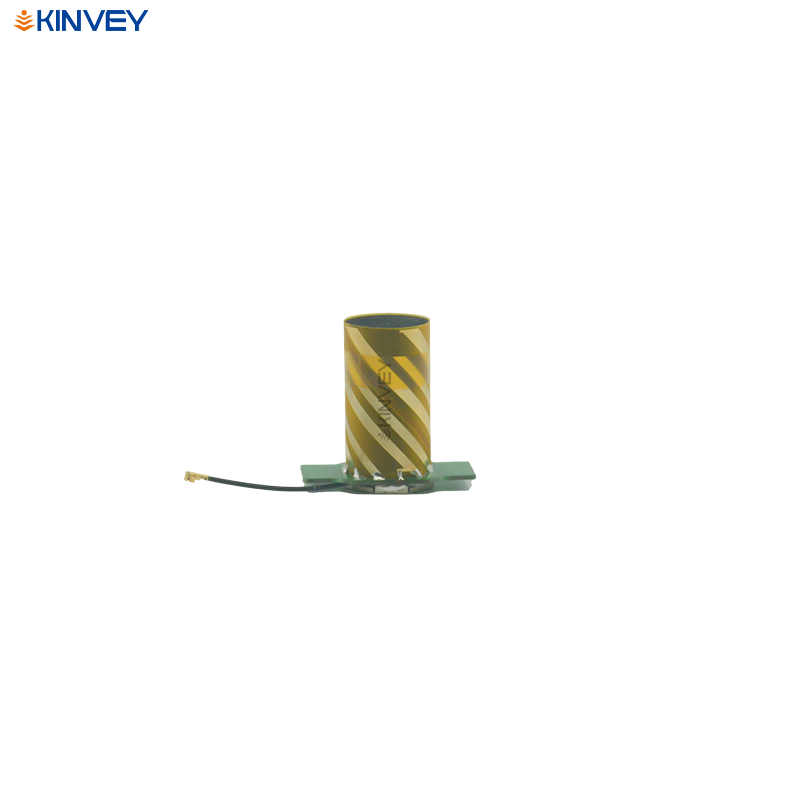

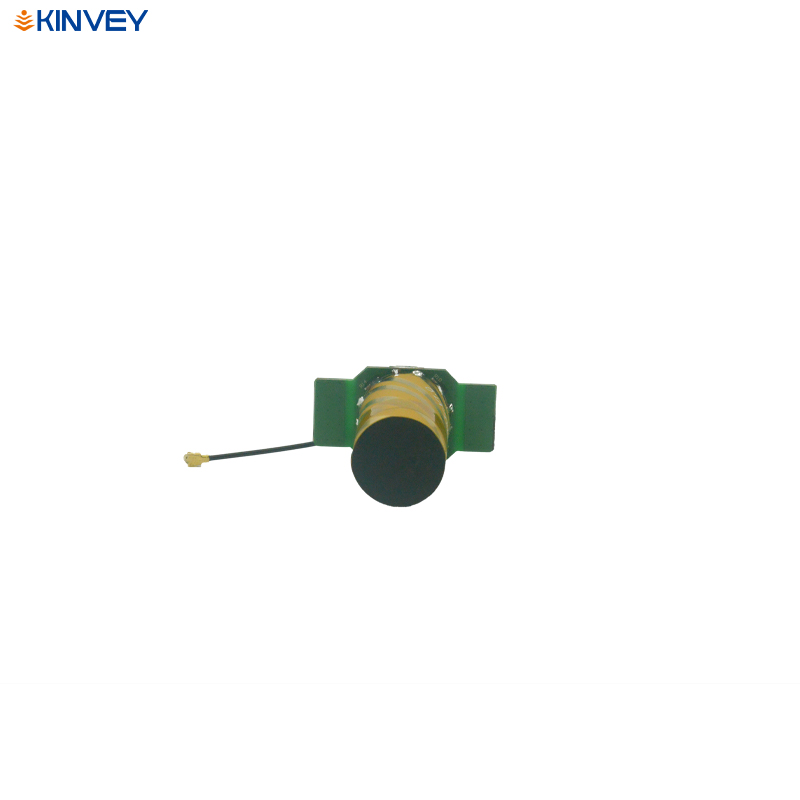

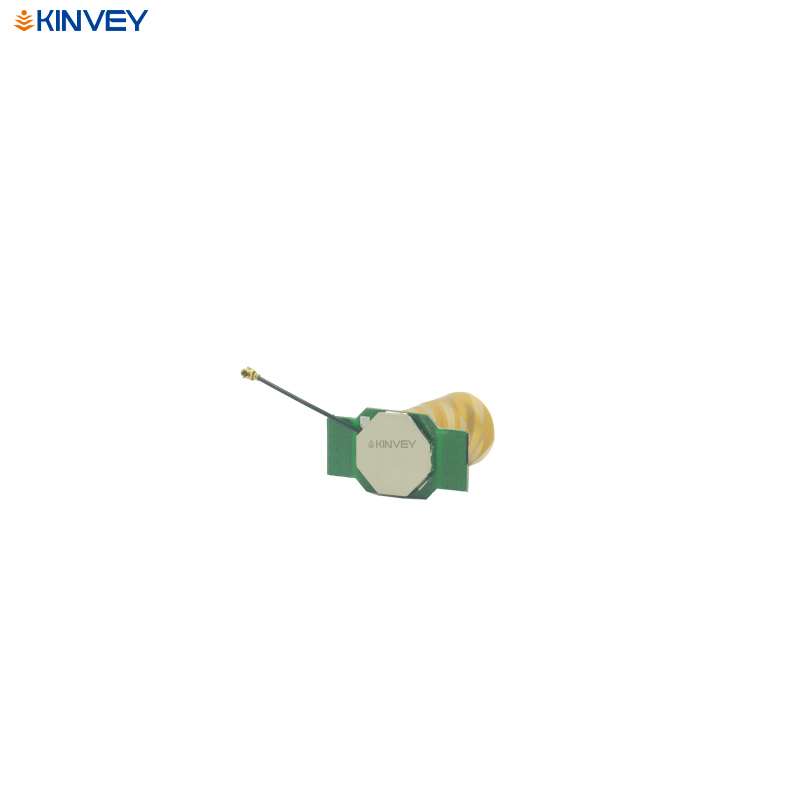

Multi-frequency Handheld Antenna KV-GM100

·Support GPS、BDS、GLONASS three-system Six-Frequency
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment
·Very small size, light weight, high degree of integration, greatly improve the convenience of the product
·Strong anti-interference performance, antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-GM100 is a tri-system six-frequency point handheld antenna supporting GPS, BDS and GLONASS, which can be widely used in surveying and mapping, high-precision UAVs and other industries, especially suitable for UAV portable positioning equipment, surveying and mapping handhelds

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency points well, greatly improving the stability of the system

● Very small size, light weight, high degree of integration, greatly improve the convenience of the product

● Strong anti-interference performance, antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2
BDS B1/B2
GLONASS G1/G2/G3

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB

Azimuth coverage

0°~360°
