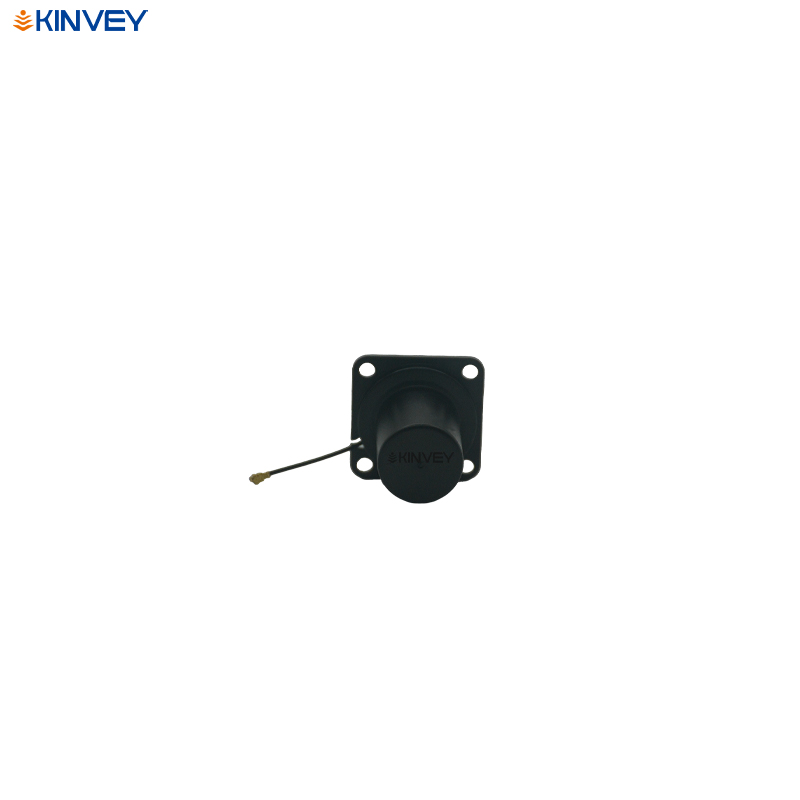

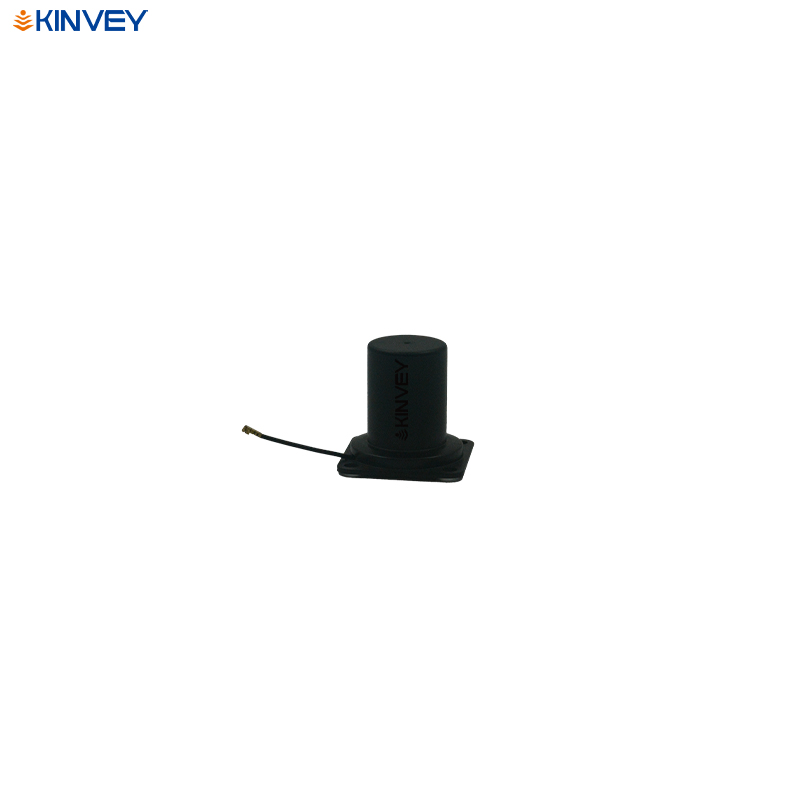

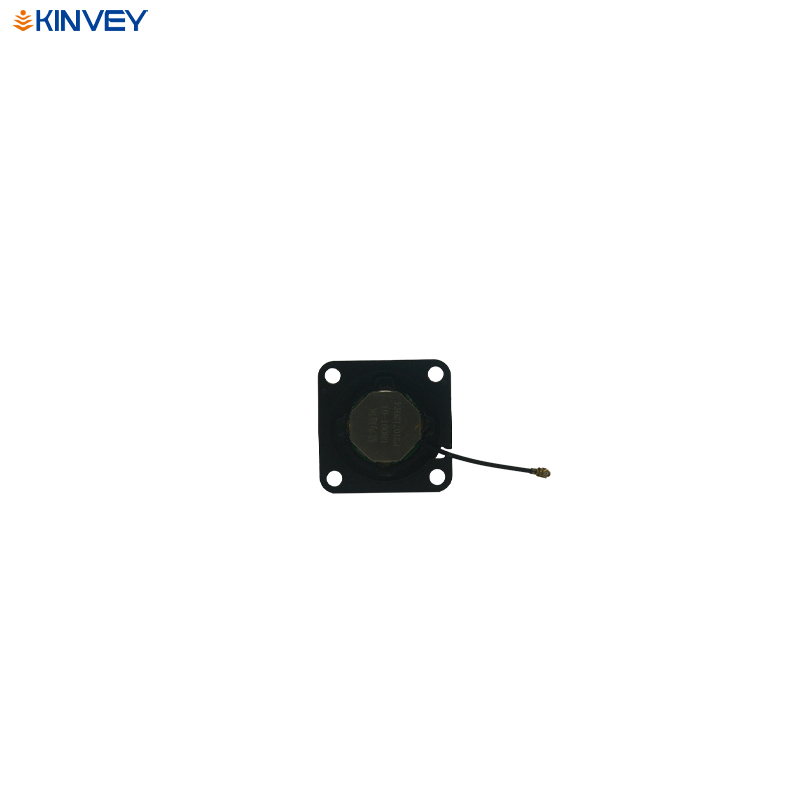

Multi-frequency handheld/drone antenna KV-U8001-01

·Suport GPS、BDS、GALILEO three-system five-frequency
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment
·Small size, light weight, reliable structure, especially for small UAV high-precision applications
·Antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-U8001-01is a four-system multi-frequency UAV antenna supporting GPS/BDS/GLONASS and GALILEO, which can be widely used in surveying and mapping, high-precision UAVs, vehicle-mountedand other industries, especially suitable for many applications of light weight UAVs, such as agriculture, aerial photography, telemetry, disaster surveillance, patrolling, public security monitoring, electric power patrols, etc

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency points well, especially the global networking B3 frequency point, greatly improving the stability of the system

● Small size, light weight, reliable structure, especially for small UAV high-precision applications

● Antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2
BDS B1/B2/B3
GLONASS G1/G2/G3
GALILEO E1/E6/E5b

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB
