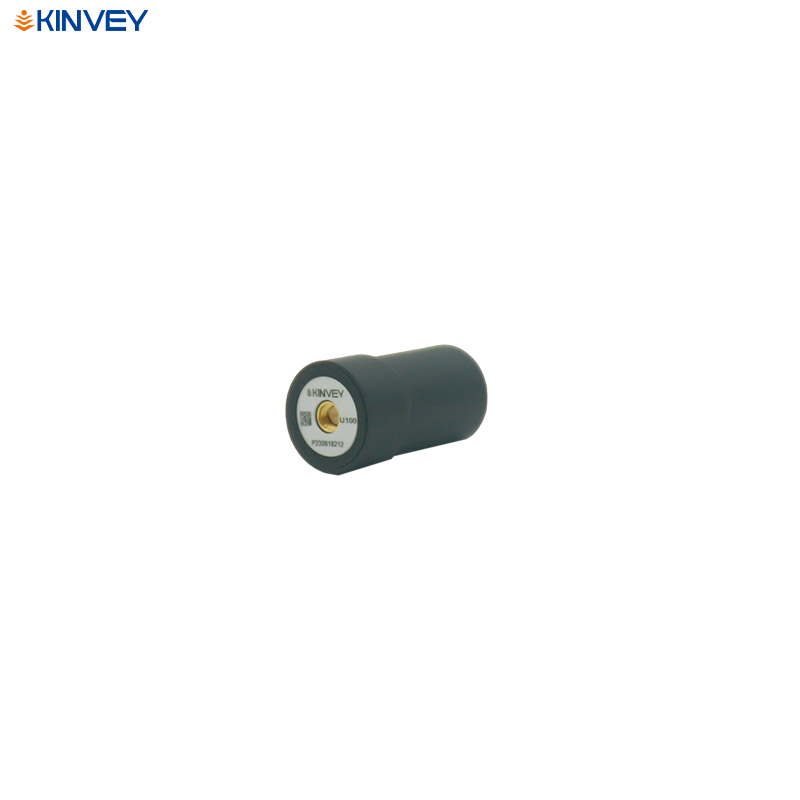

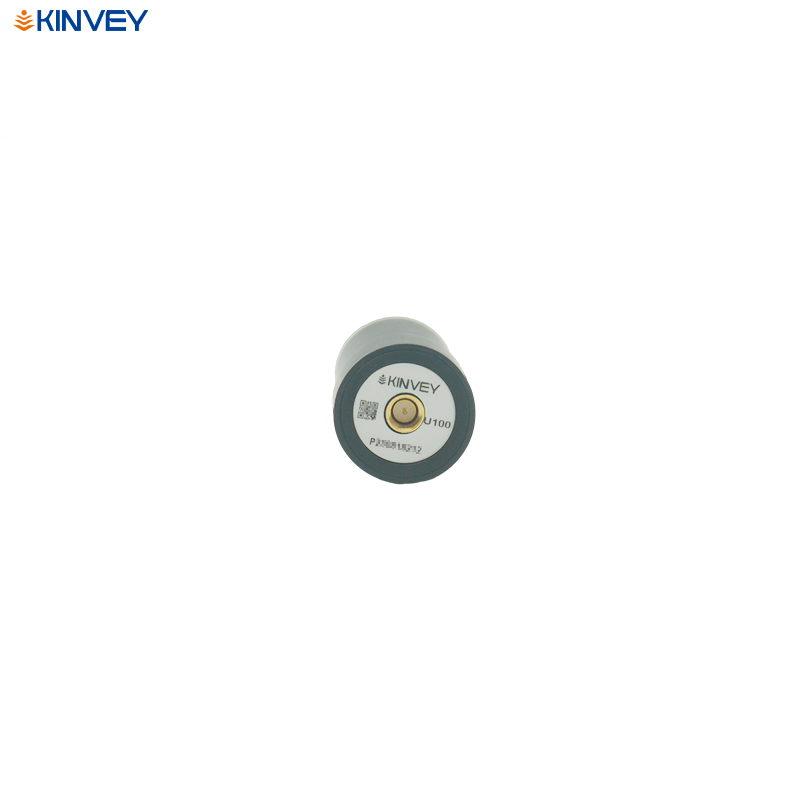

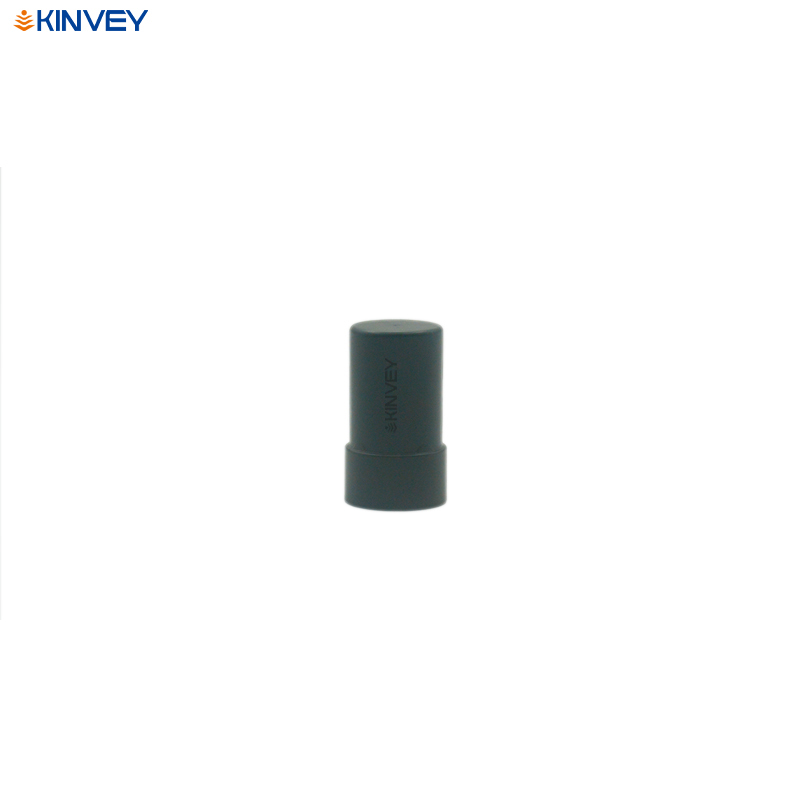

Multi-frequency drone antenna KV-U100

·Support four-system full-band
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment
·Very small size, light weight, reliable structure, assembled protection level up to IP67, single antenna to meet IP65, significantly improve the reliability of the UAVs. Such as waterproof, impact, etc
Inquiry
Overview
Technical Features
Parameters
Applications
Recommended Products
kv-u100
gnss antenna
handheld antenna
Overview
KV-U100 is a four-system multi-frequency UAV antenna supporting GPS/BDS/GLONASS and GALILEO, which can be widely used in surveying and mapping, high-precision UAVs, vehicle-mounted and other industries, especially suitable for many applications of light weight UAVs, such as agriculture, aerial photography, telemetry, disaster surveillance, patrolling, public security monitoring, electric power patrols, etc
Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment.

● Passive antenna with wide working band can support multi-system & multi-frequency points well, especially the global networking B3 frequency point, greatly improving the stability of the system

● Very small size, light weight, reliable structure, assembled protection level up to IP67, single antenna to meet IP65, significantly improve the reliability of the UAVs. Such as waterproof, impact, etc.

● Antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability


Parameters
PERFORMANCE
Signal Received
GPS L1/L2
BDS B1/B2/B3
GLONASS G1/G2/G3
GALILEO E1/E6/E5b
Antenna Impedance
50Ω
Polarization
RHCP
Axis Ratio
≤3dB
Azimuth coverage
0°~360°
VSWR
≤1.5
Maximum Gain
2.5dBi
Phase Center Error
±3mm
LNA
LNA Gain
33±2dB
Noise Figure
≤1.3dB
VSWR
≤2.0
Passband Ripple
±2dB
Operating Voltage
DC3.3~12V
Operating Current
≤50mA
MECHANICAL
Dimensions
Φ27.4*47.5mm
Weight
≤16g
Connector
SMA Male
ENVIRONMENTAL
Water/Dust Resistance
IP67(安装后)
Operating Temperature
-40℃~+70℃
Storage Temperature
-55℃~+70℃
Humidity
95% Non-condensing
