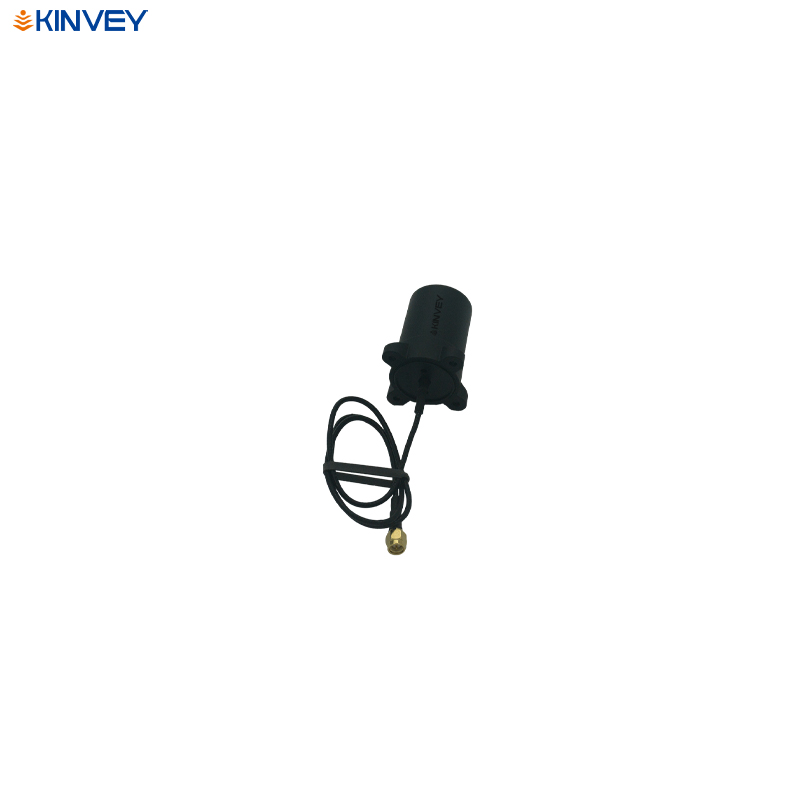

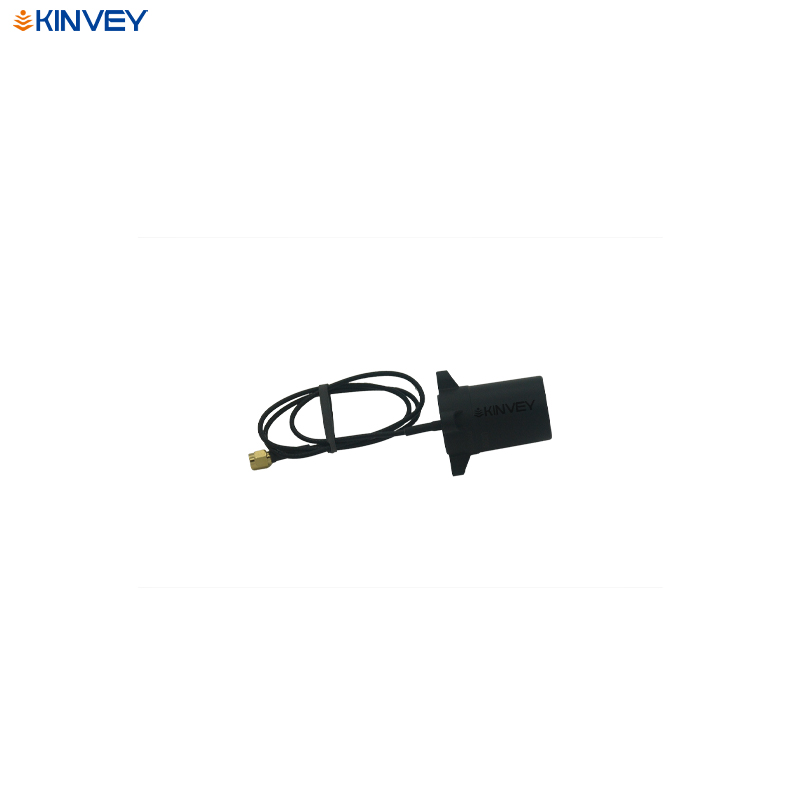

Multi-frequency drone antenna KV-UM200

·Support four-system full-band
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment.
·Antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-UM200 is a quad-system multi-frequency UAV antenna supporting GPS, BDS, GLONASS and GALILEO, which can be widely used in surveying and mapping, high-precision UAV, vehicle-mounted and other industries, and it is especially suitable for many applications of lightweight UAVs, such as agriculture, aerial photography, telemetry, disaster monitoring, patrolling, public security monitoring and electric power patrolling

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency points well, especially the global networking B3 frequency point, greatly improving the stability of the system

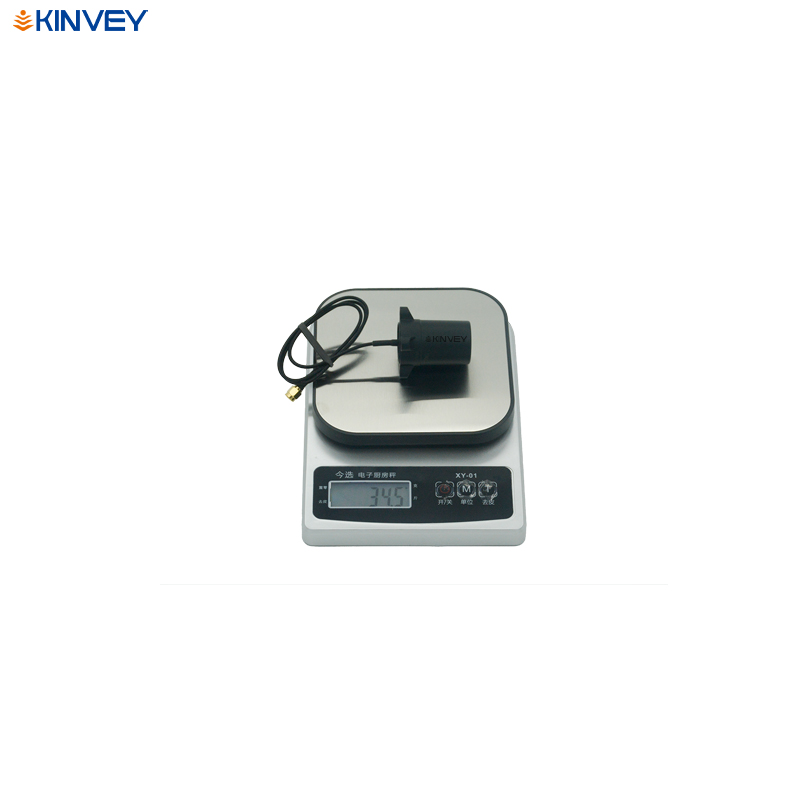

● Very small size, light weight, reliable structure, Protection level up to IP67, greatly improve the reliability of the UAVs. Such as waterproof & impact etc

● Antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2
BDS B1/B2/B3
GLONASS G1/G2/G3
GALILEO E1/E6/E5b

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB

Azimuth coverage
