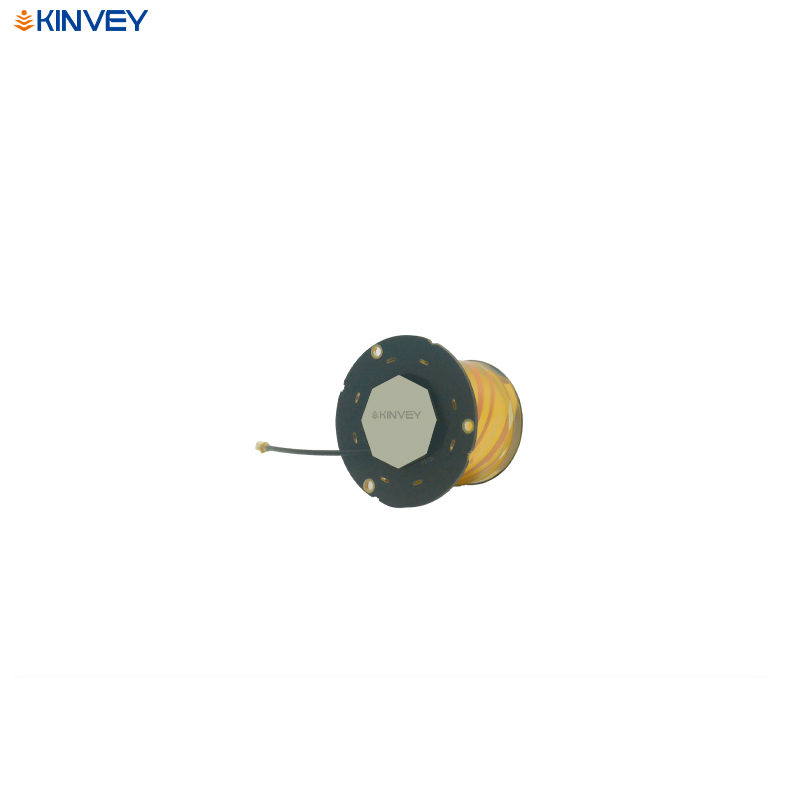

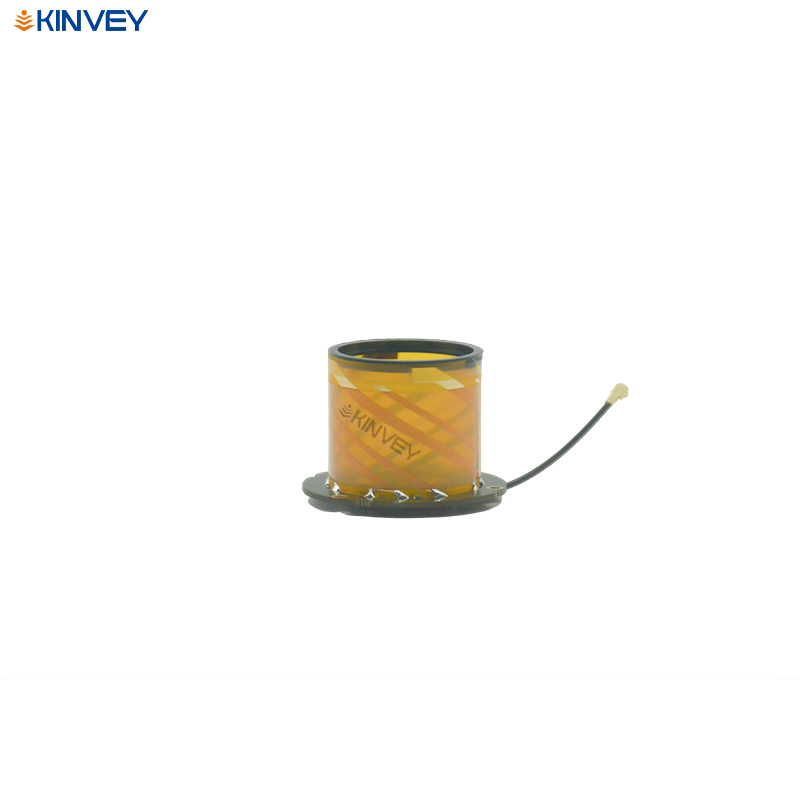

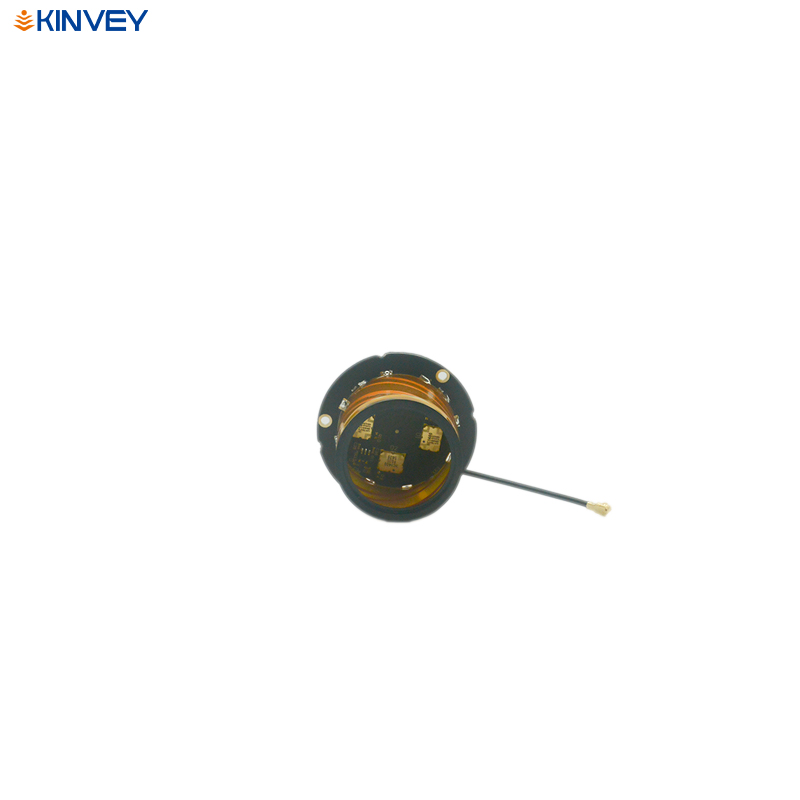

Multi-frequency UAV/Handheld Antenna KV-UM300

·Support four-system full-band
·Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment
·Strong anti-interference performance, antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Inquiry

Overview

Technical Features

Parameters

Applications

Recommended Products

Overview

KV-UM300 is a quad-system multi-frequency UAV antenna supporting GPS, BDS, GLONASS, and GALILEO, which can be widely used in surveying and mapping, high-precision UAVs and other industries, and is especially suitable for UAVs portable positioning devices and so on

Technical Features

● Passive antenna with high gain, wide beam width, low elevation angle signal reception effect is good, can receive satellite signal in serious blocking environment

● Passive antenna with wide working band can support multi-system & multi-frequency points well,especially the global networking B3 frequency point, greatly improving the stability of the system

● Strong anti-interference performance, antenna out-of-band rejection is high, can effectively avoid base station and other signal interference caused by system instability

Parameters

PERFORMANCE

Signal Received

GPS L1/L2
BDS B1/B2/B3
GLONASS G1/G2
GALILEO E1/E5b

Antenna Impedance

50Ω

Polarization

RHCP

Axis Ratio

≤3dB

Azimuth coverage

0°~360°
